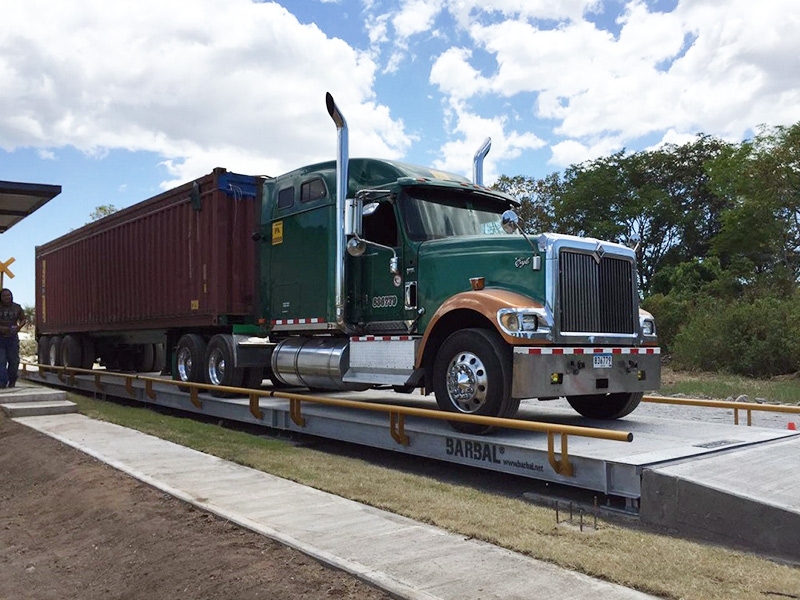

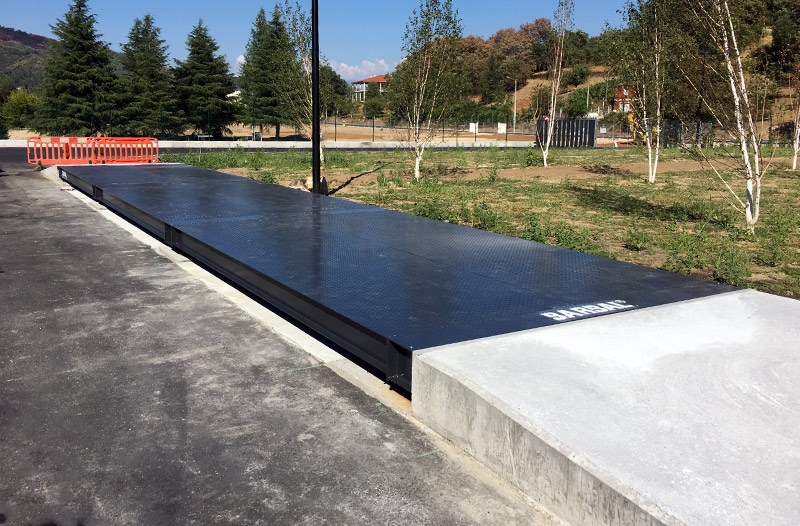

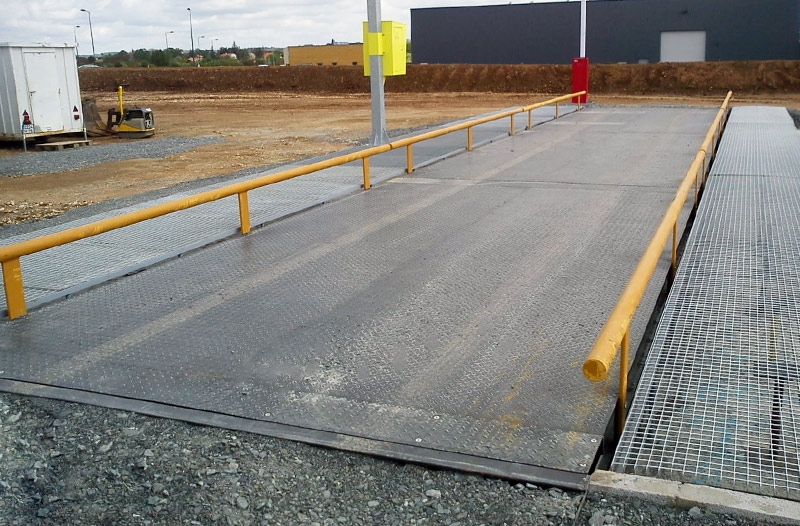

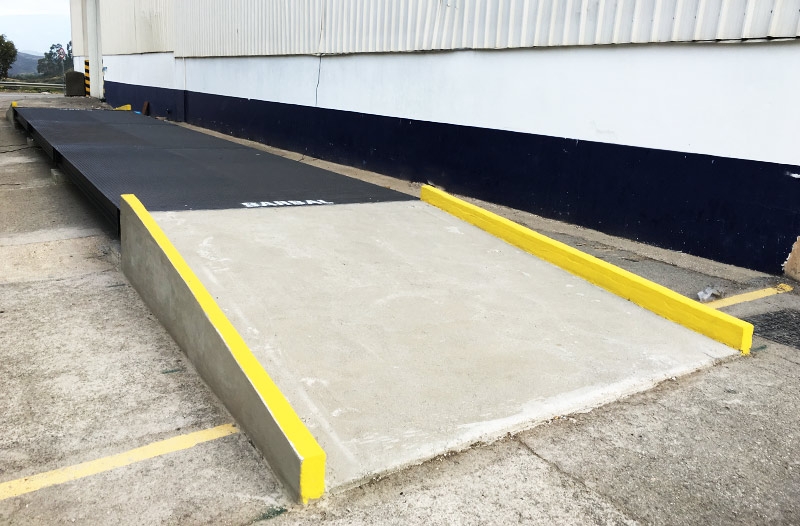

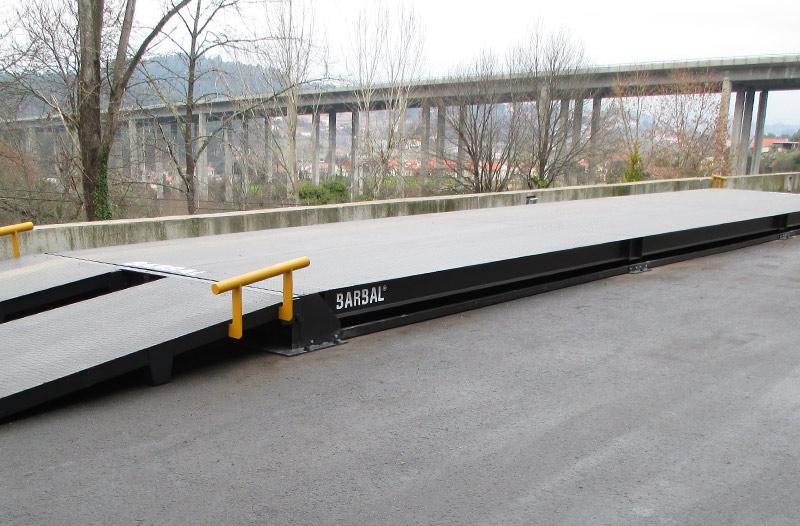

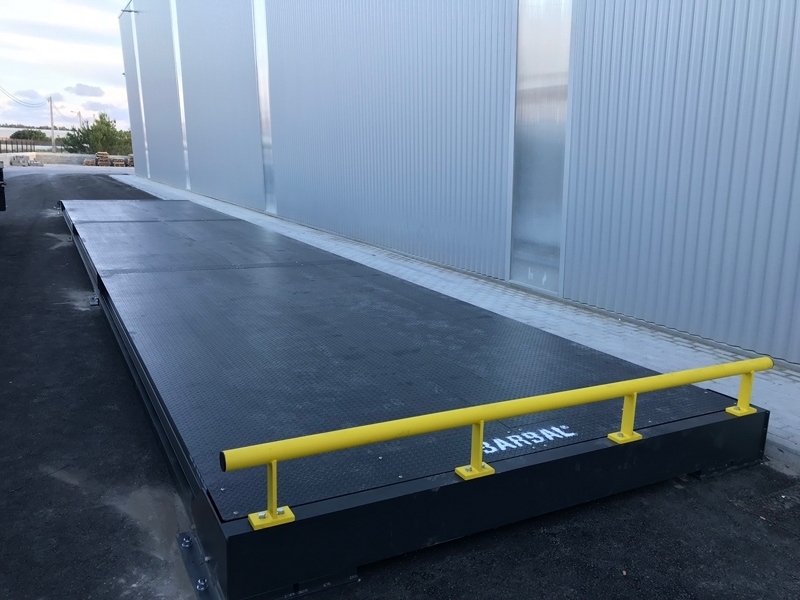

Truck scales

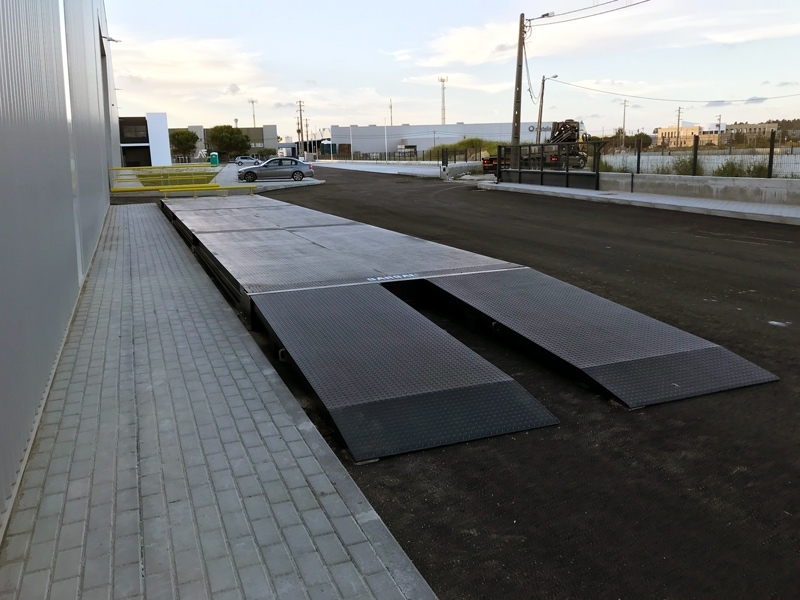

Entirely metallic bascule bridge, easily detachable, to facilitate all the operations of transport and assembly.
Extremely reduced height, can be fitted, elevated or easily adapted to existing foundations.

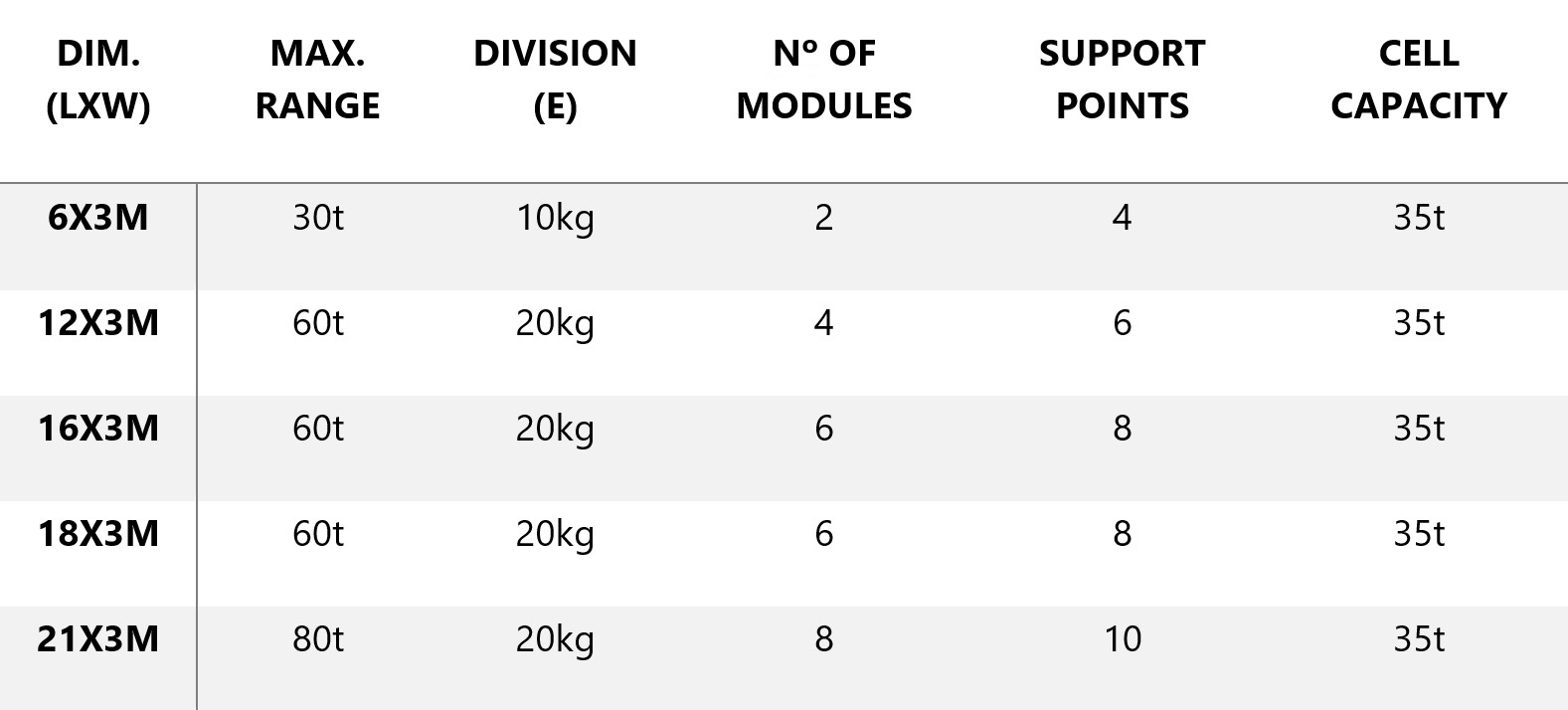

• Dimensions from 6x3m up to 21x3m
• Modular panels made of IPE/IPN steel beams
• Rolling surface composed of steel chequer plate with high thickness 6/8mm
• Easy access to load cells and junction box through removable access hatches on the surface platform
• Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60
• As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.
• Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
  Suitable for an intensive usage.

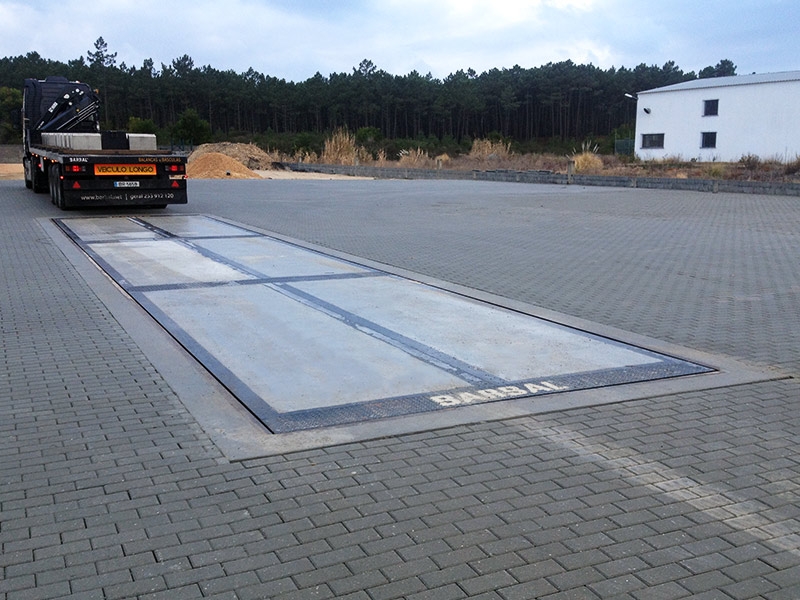

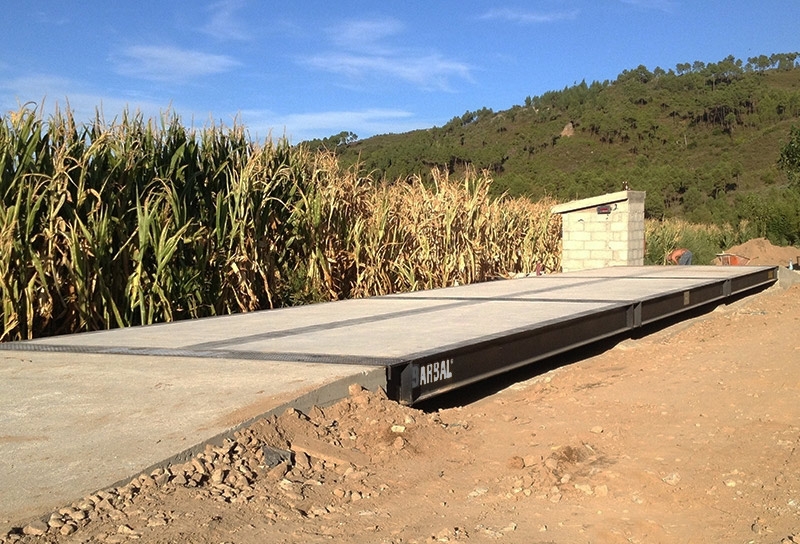

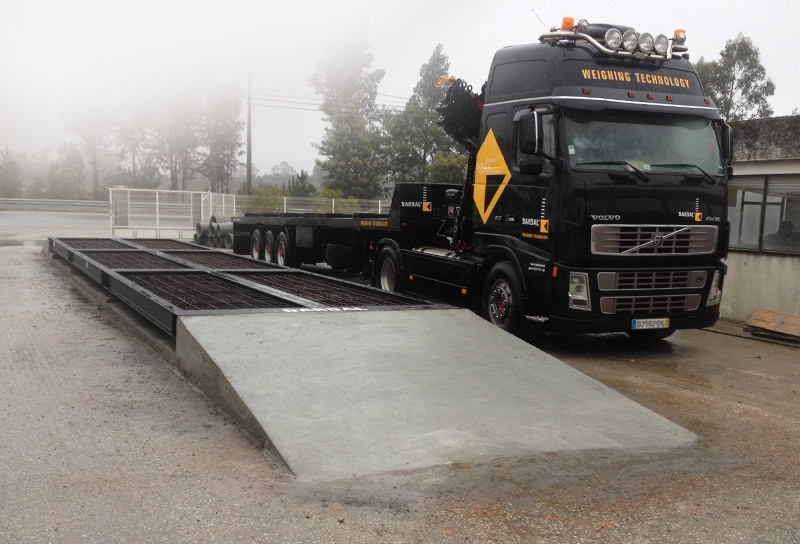

STEEL/CONCRETE WEIGHBRIDGE

CONCRETE POURED IN FACTORY
Above Ground or Pit Mounted

• Dimensions from 6x3m up to 21x3m
• Modular panels composed of IPE/IPN steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete poured in factory)
• Easy access to load cells and junction box through removable access hatches on the surface platform
• Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60
  As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable.
• Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)

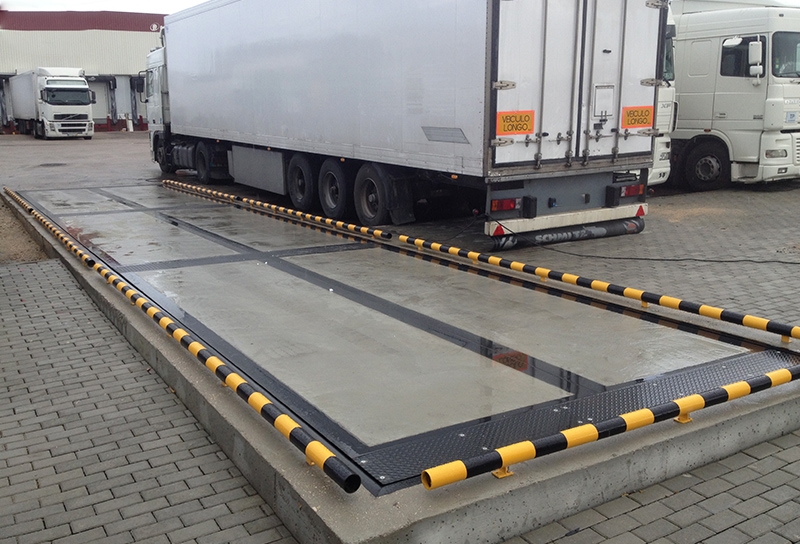

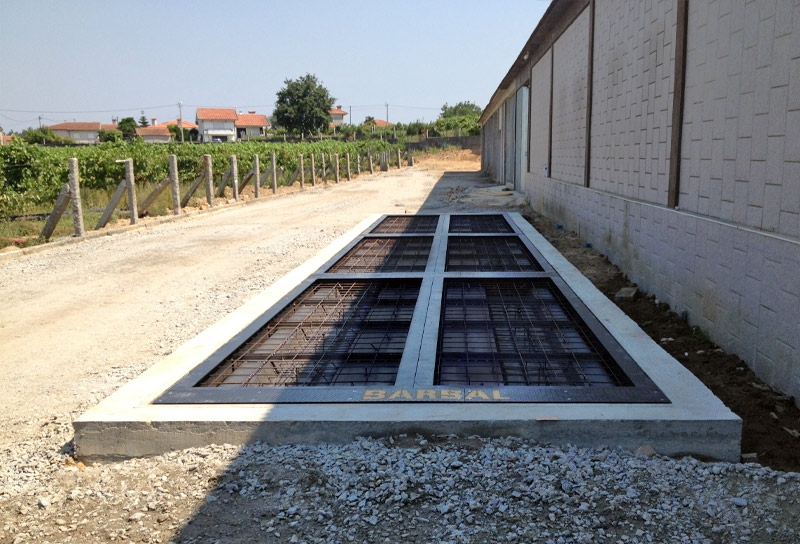

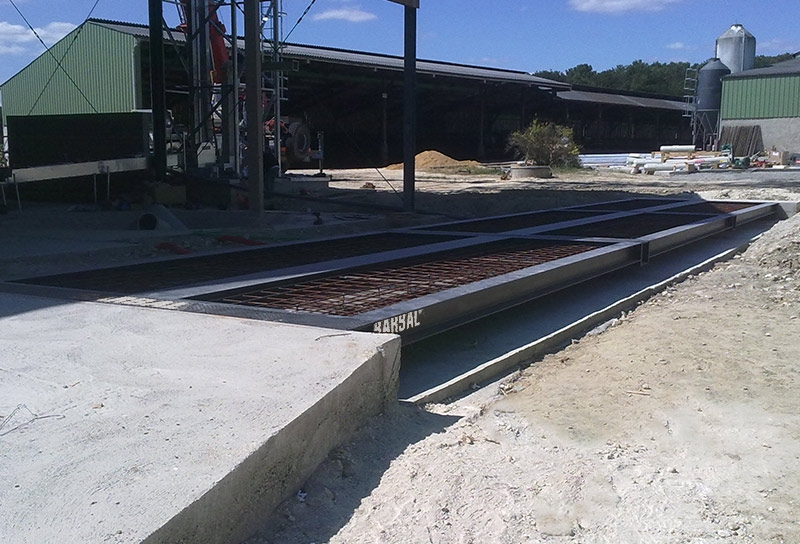

STEEL/CONCRETE WEIGHBRIDGE

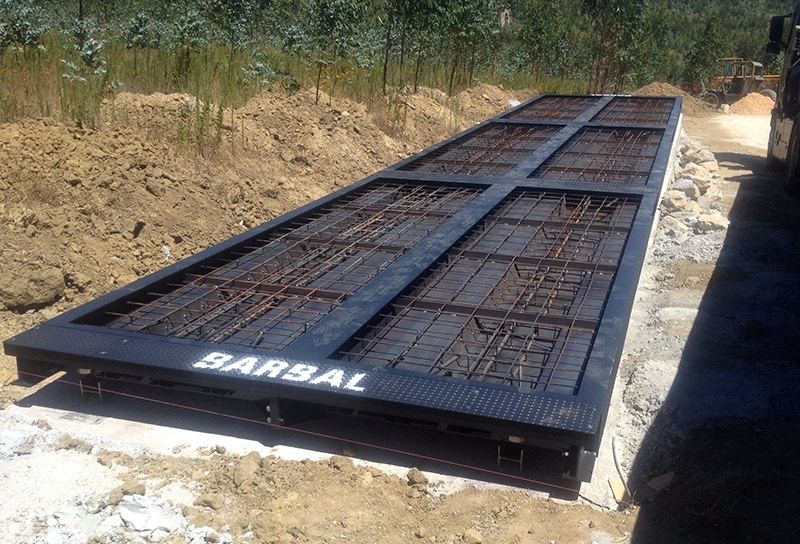

CONCRETE POURED IN INSTALLATION SITE
Above Ground or Pit Mounted

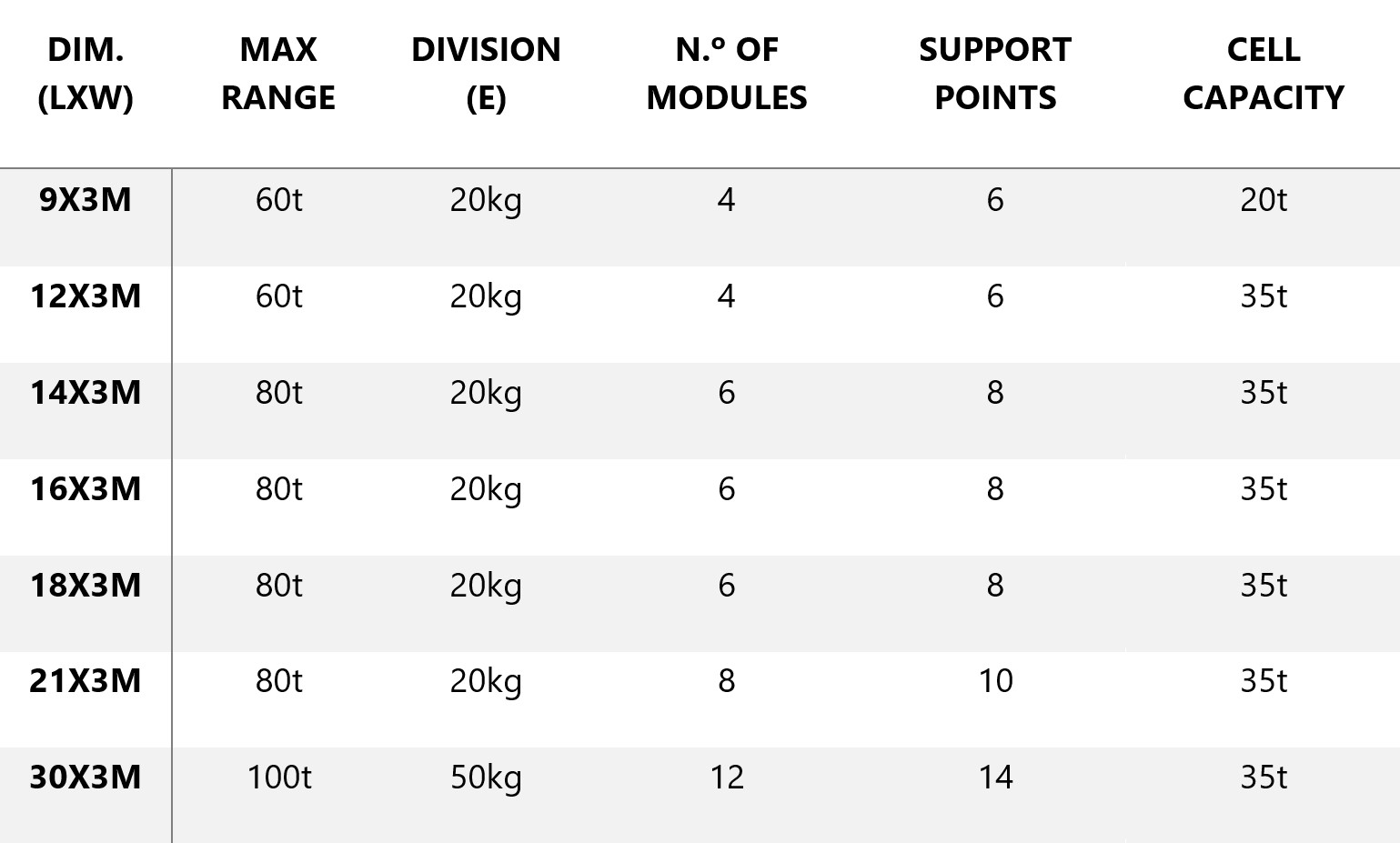

• Dimensions from 9x3m up to 30x3m
• Max. capacity/scale interval: from 10t/5kg up to 150t/50kg
• Modular panels composed of IPE steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete to be poured in installation site). The client only needs to pour the concrete
• Height of the rolling surface: 370mm
• Easy access to load cells and junction box through removable access hatches on the surface platform
• Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60
• As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable
• Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
• Suitable for an intensive usage

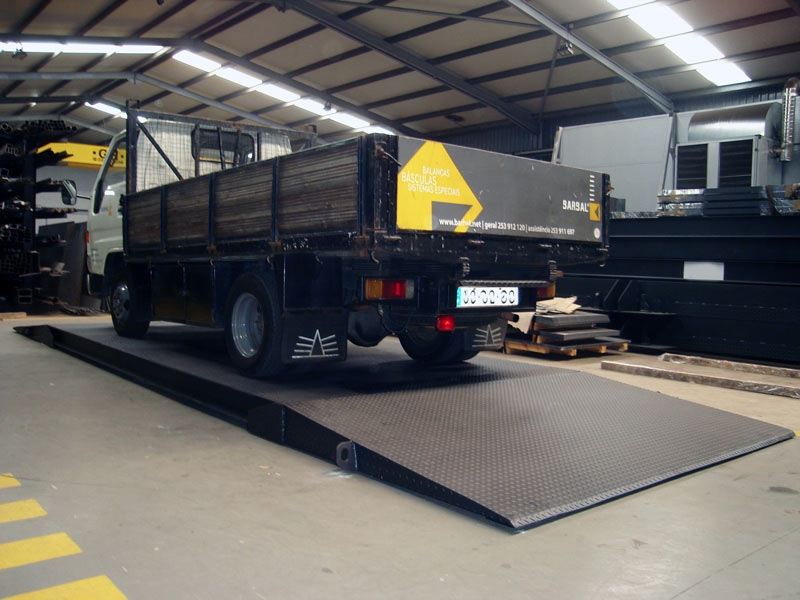

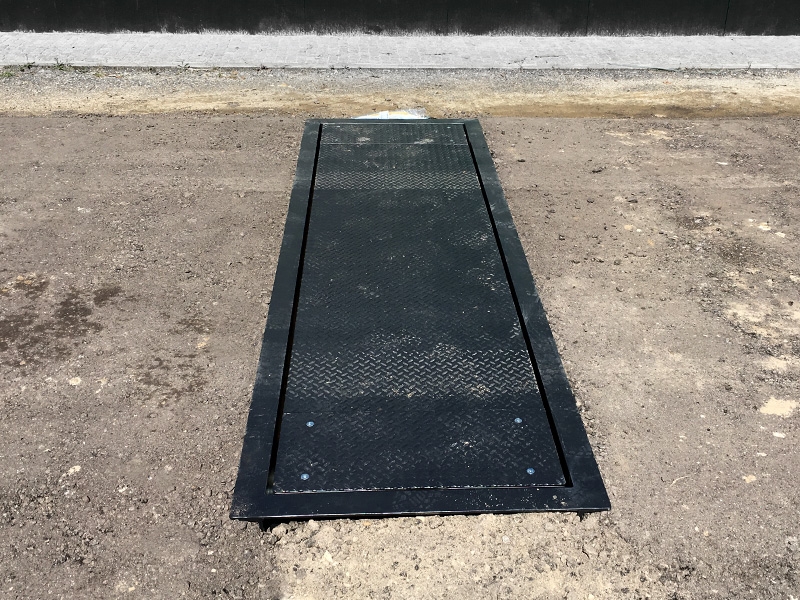

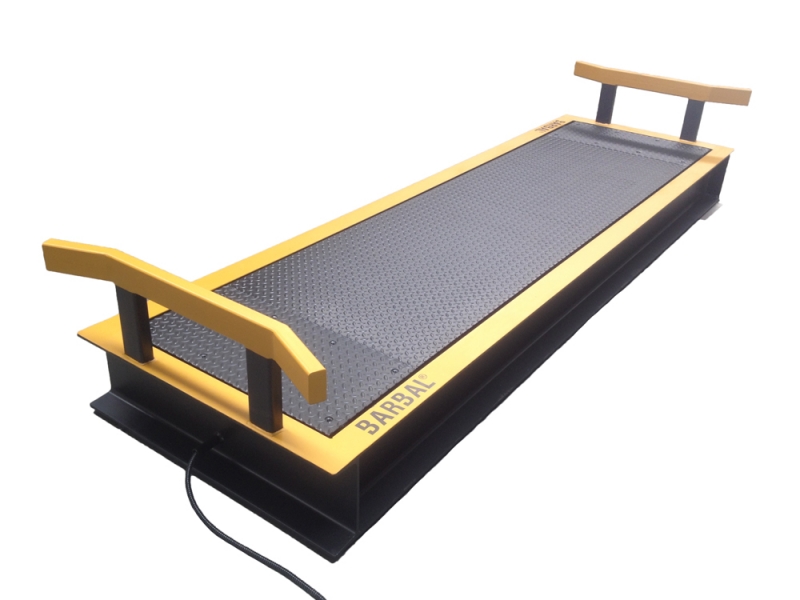

METALLIC WEIGHBRIDGE

FOR WEIGHING LIGHT VEHICLES
Above Ground or Pit Mounted

• Dimensions 5,0x2,3m and 6,0x2,5m (LxW)
• Max. capacity/scale interval: 10t/5kg
• Monobloc deck composed of steel beams
• Rolling surface made of high thickness chequer plate
• Height above the ground: 200mm
• Easy access to load cells and junction box through removable access hatches on the surface platform
• Stainless steel compression load cells, self-centring rotation column IP68 (analogue or digital)
• Adjustable feet to help levelling
• Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)
• Suitable for an intensive usage

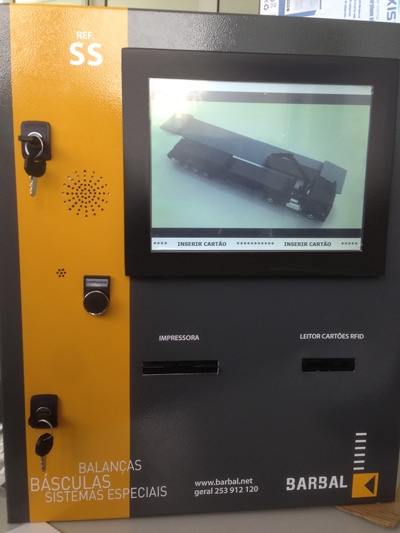

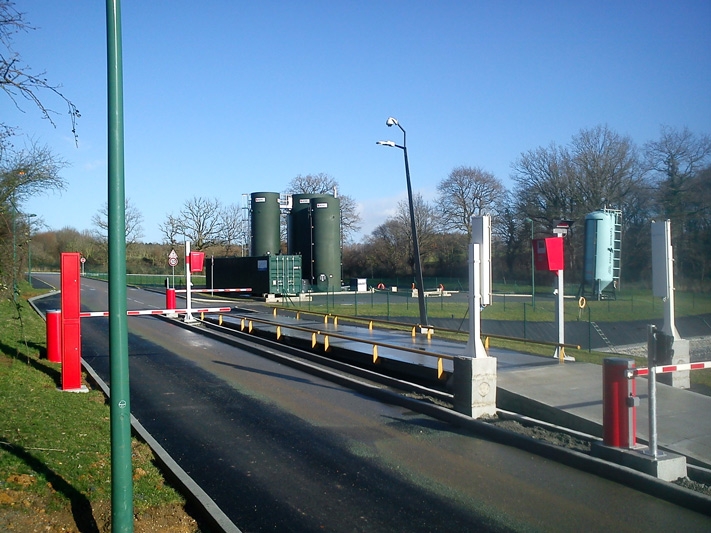

Terminal specially adapted to allow the execution of weighing on a bascule bridge by the drivers themselves. Its box and its efficient regulation system guarantee excellent reliability even in extreme environmental conditions.

Can be equipped with various identification/transaction authorisation systems (card readers, coin readers, transponder through approximation, etc).nbsp;

Provides a homologated weight receipt with the card code, date/time, sequence no., 1st weight, 2nd weight, net and possible associated data.

Various interconnected terminals can exist (e.g.: 2 terminals on the same bascule, allowing weighing in both directions).

With these terminals, you can implement your own integral control installations, such as cement, concrete plant installations, granulate suppliers, etc.

For more information on these terminals, consult our solutions section.
