Scales

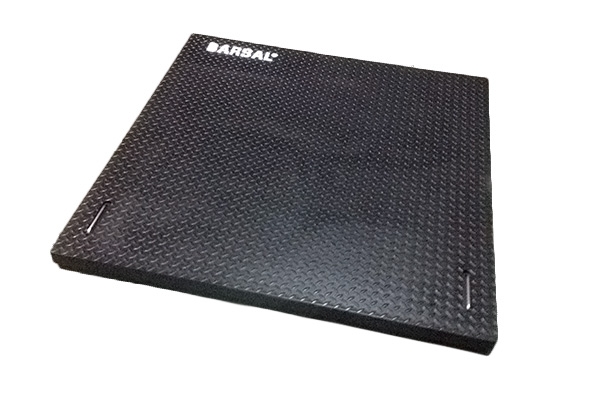

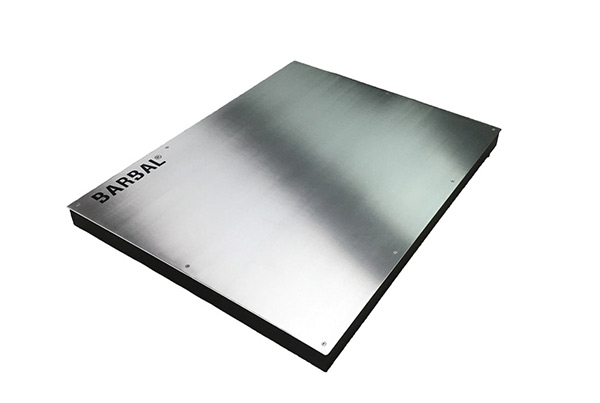

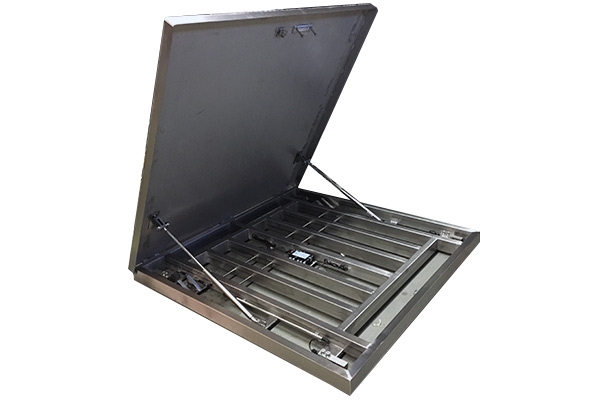

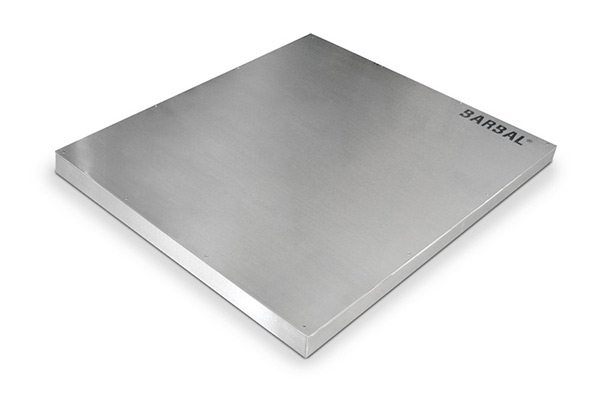

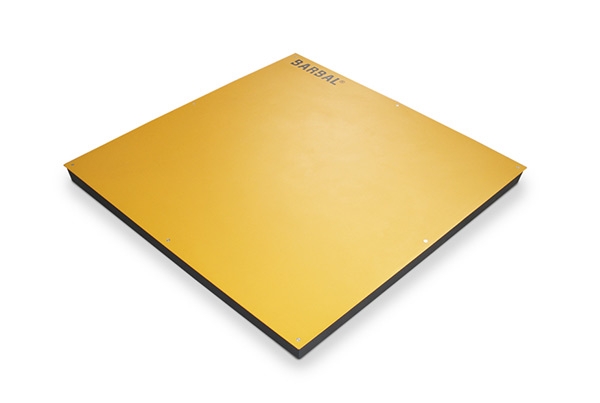

4 Cell Scales PL4

The PL4 series scales are characterised by the extremely low height of the structure and the high degree of robustness and resistance to overloads.

Monoblock construction platform , in steel ST 37 K and anti-corrosion industrial painting after stripping, or entirely in stainless steel ASI (corrosive environments), with levelling feet, designed to absorb lateral loads and fixed directly to the cells, represents a simple and functional load transmission system, which allows the reduction of the sizes and maintenance free

Can operate on the ground or can be fitted. Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

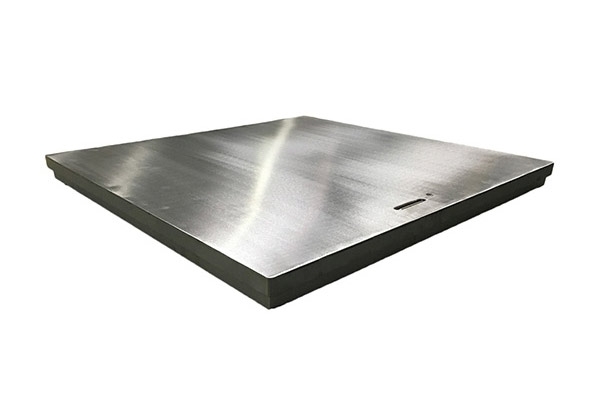

4 Cell Scales PL4/TR

The PL4/TR series scales are characterised by the extremely low height of the structure and the high degree of robustness and resistance to overloads.

Monoblock construction platform , in steel ST 37 K and anti-corrosion industrial painting after stripping, or entirely in stainless steel ASI (corrosive environments), with levelling feet, designed to absorb lateral loads and fixed directly to the cells, represents a simple and functional load transmission system, which allows the reduction of the sizes and maintenance free

Can operate on the ground or can be fitted. Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

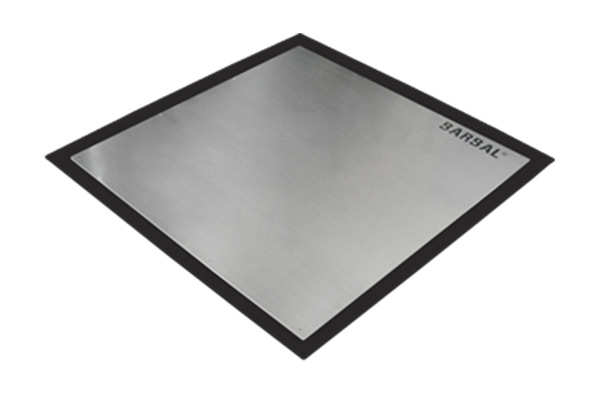

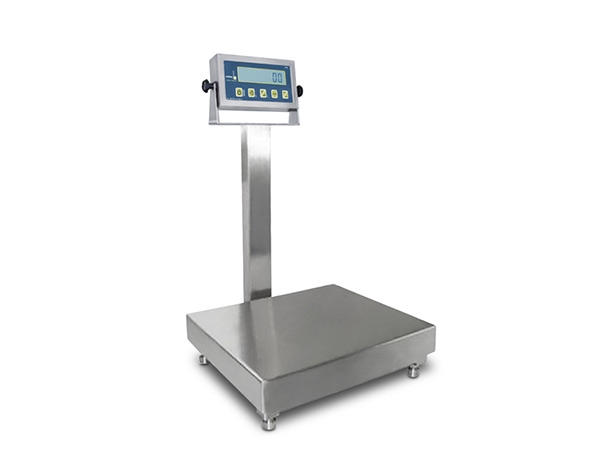

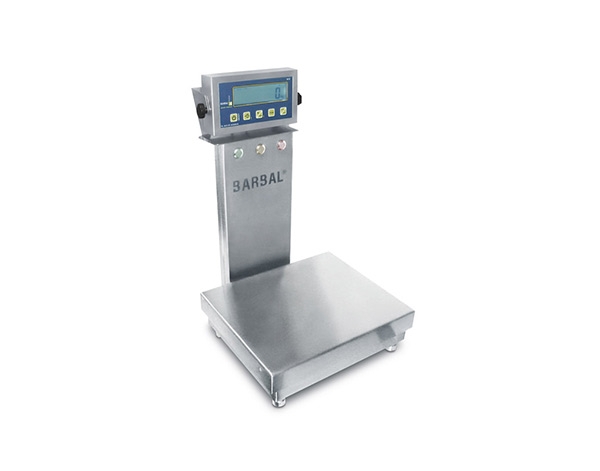

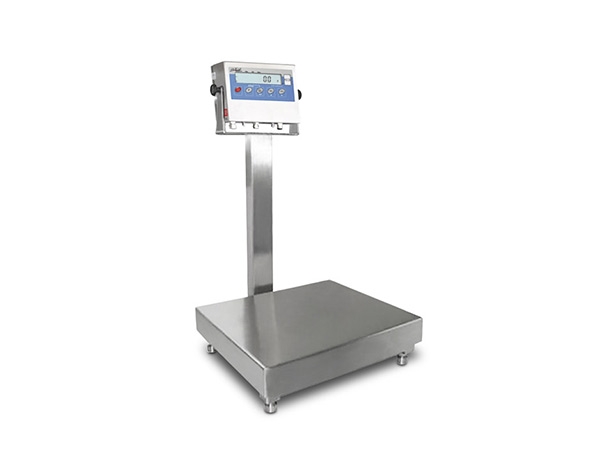

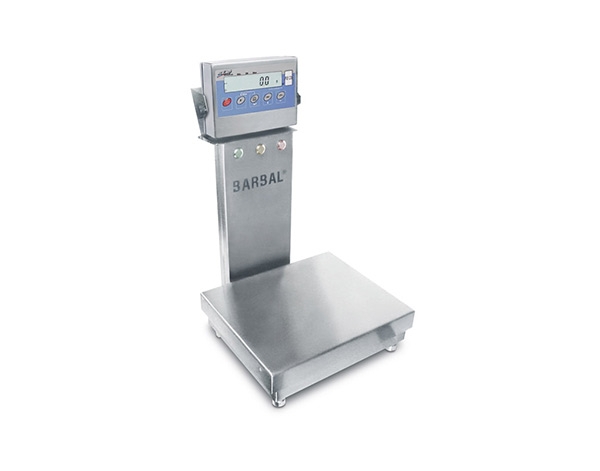

Monocell Scales MN

This type of base is aimed at weighing small goods. It is equipped with a central support loading cell (single point).

The structure that supports the weight has a robust construction. It can be made entirely in Iron with an industrial anti-corrosive paint finish after stripping, or in Stainless Steel ASI (for corrosive environments), available from 3 kg to 600 kg and in the sizes 200x200mm to 800x800mm.

Weighing platform for various uses, in industrial and commercial weighings

The versatility of this equipment allows its use in assembly and control lines, and is appropriate for integrated solutions in plant environments

The structure is entirely made from steel, and is protected against accidental overloads.

High precision, robust, manoeuvrability, easy to install and totally maintenance free.

Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

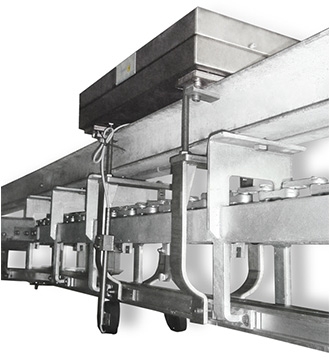

Airway Scales VAR

This type of base is designed for the weighing of animals and goods on rails.

The weighing platform is made up of two stainless steel cells. The structure that supports the weight has a unique robust construction, in Stainless Steel ASI (for corrosive environments), available from 300 kg to 3000kg.

Extremely versatile equipment due to its double function: weighing while suspended and dynamically in motion.

High precision, robust, manoeuvrability, easy to install and totally maintenance free.

Bascule with reduced sizes, for application in the air transport of products. Especially designed for abattoirs, wineries and the food industry in general.

High degree precision, even in severe working conditions. Can be connected to computerised systems to manage processes and/or control. Easy and quick to assemble, very robust and maintenance free.

Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

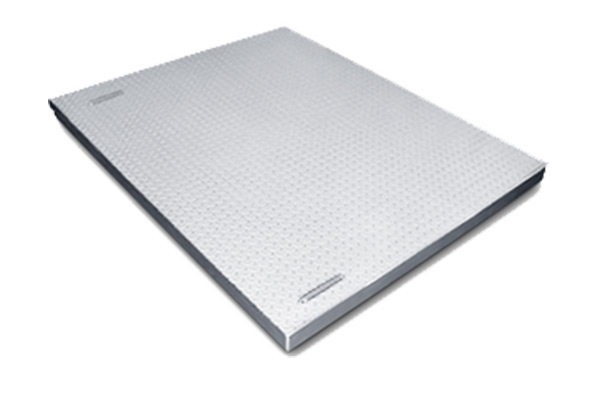

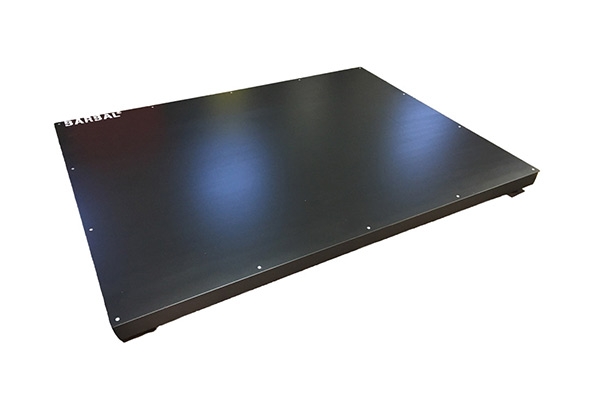

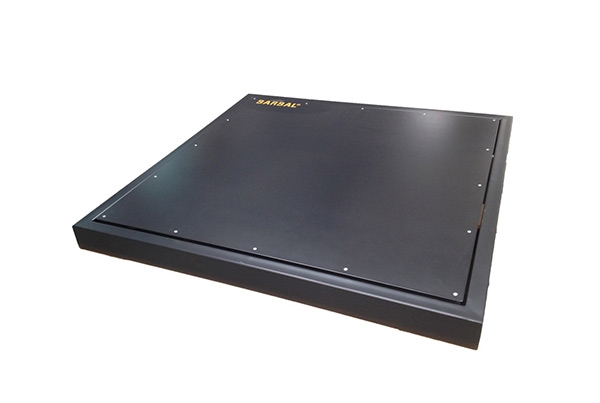

Low Profile Scales PL4R

The PL4R series scales are characterised by the extremely low height of the structure and the high degree of robustness and resistance to overloads.

Monoblock construction platform, in steel ST 37 K and anti-corrosion industrial painting after stripping, or entirely in stainless steel ASI to be used in aggressive environments, with levelling feet, designed to absorb lateral loads and fixed directly to the cells, represents a simple and functional load transmission system, which allows the reduction of the sizes and maintenance free.

Weighing platform with an extremely low height and a high degree of robustness and resistance to overloads.

Can be fitted or elevated with optional access ramps.

Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

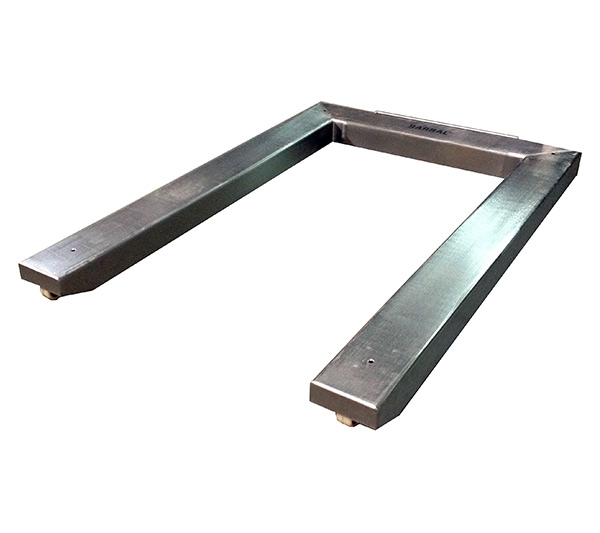

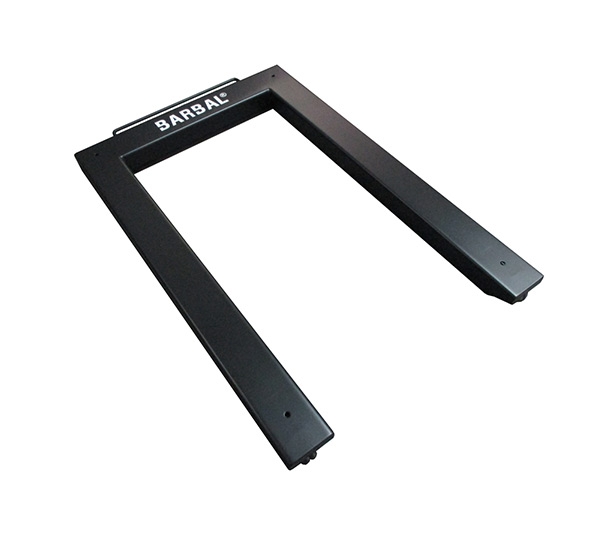

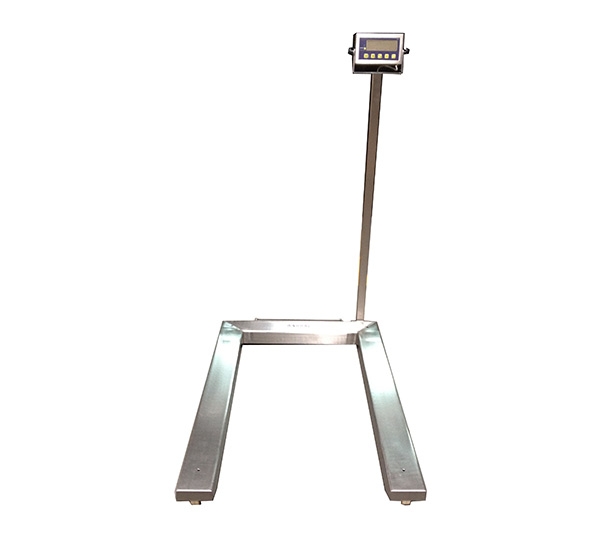

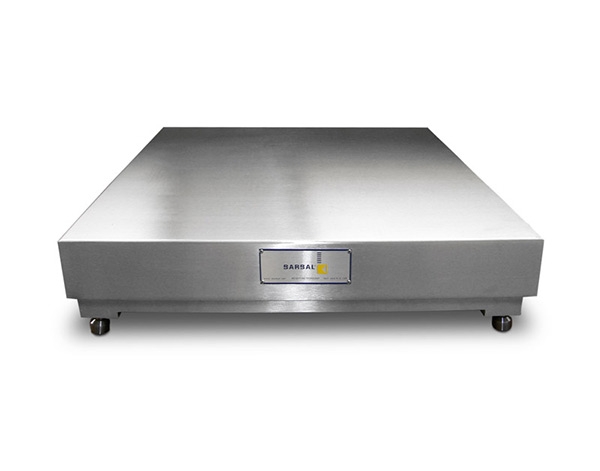

Palette Scales PL4U

The PL4U series scales are specific for the weighing of pallets, as they are easily displaceable. There are two types of finishes, in steel with an industrial paint finish and entirely in stainless steel.

Weighing platform especially designed for the weighing of goods transported on a pallet carrier. Compact and light, equipped from the beginning with wheels and handles for easy movement.

The structure is robust and has levelling feet, in stainless steel, directly connected to the load cells, representing a simple and functional load reception system, maintenance free. The weight is obtained using four load cells.

Can be connected to any reader from our wide range, in Mono range (3000 - 6000 divisions) or Multi range versions.

The weighing systems configured in this manner have EC approval of the type in conformity with Directive 90/384/CE.

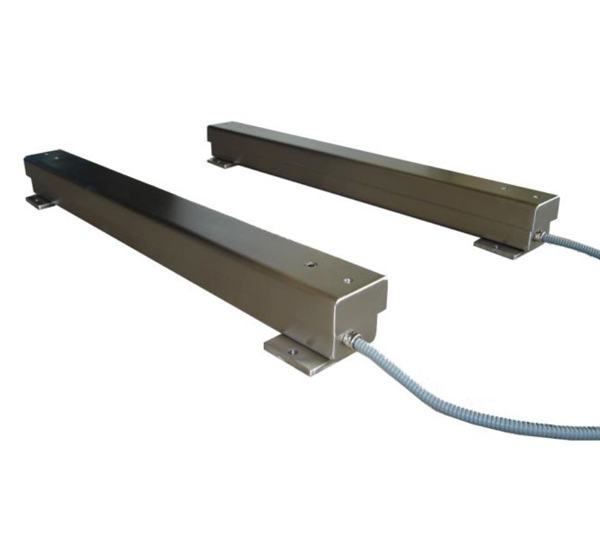

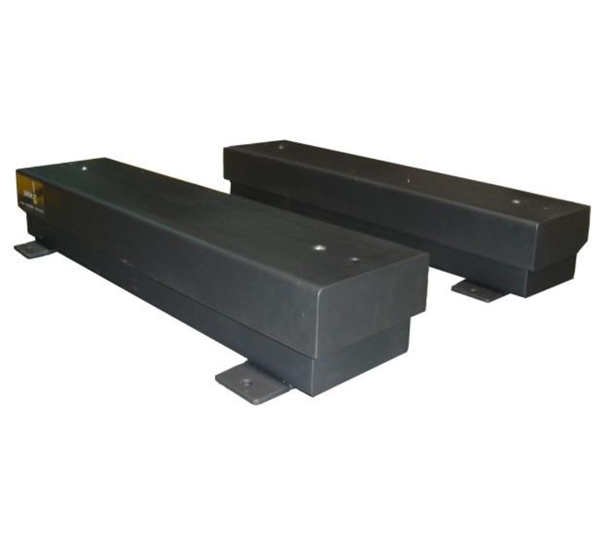

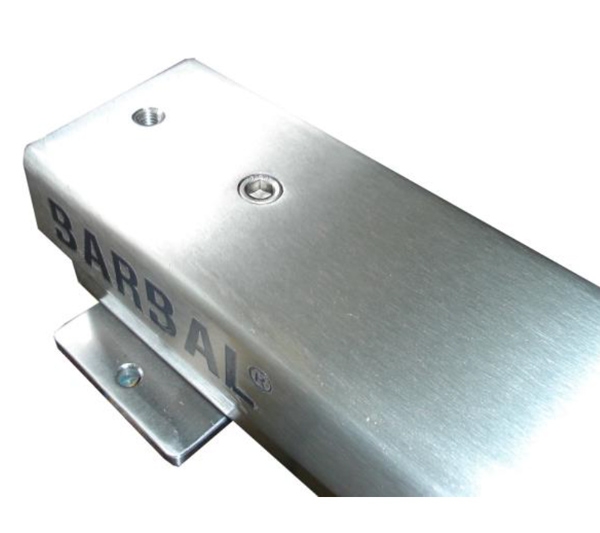

BR Scales

GENERAL FEATURES

  • Electronic weighing system consisting of two weighing bars and a high precision weighing indicator
  • Robust and unique construction structure (prepared for intensive use)
  • Simple and functional load transmission system that minimizes the size of the bars
  • Simplified handling and transport
  • Made with leveling feet with direct attachment to the cells, designed for the absorption of side loads

TECHNICAL CHARACTERISTICS

  • Fully made in ST 37 K steel
  • Finishing with application of anticorrosive industrial paint after stripping process
  • Each weighing bar is equipped with 2 OIML R60 certified stainless steel load cells and IP68 degree of protection
  • IP55 watertight junction box
  • Each bar has two holes at each end to facilitate leveling of various elements such as loading platforms for livestock
